 DESCRIPTION |
| The ELIM EL-31202 TX/RX seriesdata transceiver supportsdigital data transmission over a single-mode optical fiber. It is suitable for long haul transmission application without any noise or electromagnetic interference.The modules are universallycompatible with Major CCTV control data and support RS-232, RS-422 and 2-wire or 4-wire RS-485data interfaces,as well as Sensormatic Sensornet¢âand all major data protocols.Plug-and-play design ensures ease of installation requiring no Electrical or optical adjustments. Each Transceiver incorporatesstatus indicating LED¡¯s for monitoring of proper System operation. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
Plug-and-Play Installation ( Adjustment-Free )
LED Status Indicators For Monitoring system status
Hot-Swappable Rack Modules
Automatic re-settable Fuses
Free voltage Power Input
Transmission distances up to 190Km
Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business
|
| |
NMS ( option ) |
| |
Displays local communication status
Monitoring system status for each site
Provides optical cable network broken-down alarm
Provides system operation history and management.
|
|
| ORDERING INFORMATION |
| |
PART
NUMBER |
DESCRIPTION |
OPTICAL
PWR BUDGET |
MAX
DISTANCE
|
SINGLE-MODE
9/125um |
EL - 31202 TX
EL - 31202 RX
EL - 31402 TX
EL - 31402 RX
EL - 31602 TX
EL - 31602 RX |
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
|
7dB
13dB
20dB
|
20Km
40Km
60Km |
MULTI-MODE
62.5/125um |
EL - 31051 TX
EL - 31051 RX
EL - 31101 TX
EL - 31101 RX
EL - 31201 TX
EL - 31201 RX |
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
1ch Data Transmitter
|
5dB
10dB
20dB
|
5Km
10Km
20Km |
|
| SPECIFICATIONS |
DATA
Data Interface: RS-232,RS-422, RS-485 with Tri-State
Data Format: NRZ,RZI,Manchester, Bi-phase
Data Rate: DC - 300Kbps(NRZ)
Bit Error Rate: < 1 in 10 E-9
Operating Mode: Simplex or Full-Duplex
WAVELENGTH 1310~1550nm
OPTICAL EMITTER Laser Diode
NUMBER OF FIBER 1 or 2Core
LED INDICATORS
¤ıData Transceiver
¤ıRX, TX Data LED
¤ıPower LED
|
|
| |
|
| |
CONNECTORS
Data: Terminal Block with Screw Clamps, Type DB-9 Connector (RJ-45)
Optical: ST or SC Connector
ELECTRICAL & MECHANICAL
Power: 12 VDC @200mA
Surface Mount: From Rack
Number of Rack Slots: 12
Current Protection: Automatic Resettable Solid-State
Current limiters
Size( WxHxD )
Module Type 87 x 32 x 113mm
3u Card Type 25 x 129 x 168mm
1u Rack Mount 483 x 44 x 300mm
3u Rack Mount: 483 x 132 x 275mm
ENVIRONMENTAL
MTBF: > 100,000 hours
Operating Temp: -40¡É to +74¡É
Storage Temp: -40¡É to +85¡É
Relative Humidity: 0% to 95% (non-condensing) |
|

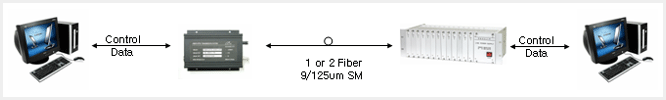

| SYSTEM DESIGN |
 |
|
