 DESCRIPTION |
| The ELIM EL-96D1402 TX/RX seriesdata transceiver supportsSimultaneous 96 channels of digital data transmission over a single-mode optical fiber. It is suitable for long haultransmission application without any noise or electromagnetic interference.The modules are universallycompatible with Major CCTV control data and support RS-232, RS-422 and 2-wire or 4-wire RS-485data interfaces,as well as Sensormatic Sensornet¢âand all major data protocols.Plug-and-play design ensures ease of installation requiring no Electrical or optical adjustments. Each Transceiver incorporatesstatus indicating LED¡¯s for monitoring of proper System operation. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
Plug-and-Play Installation ( Adjustment-Free )
LED Status Indicators For Monitoring system status
Hot-Swappable Rack Modules
Automatic re-settable Fuses
Free voltage Power Input
Transmission distances up to 190Km
Registration of EMI/EMC, K-Mark, UL certificationINNO-BIZ, Good Software and Venture Business
|
| |
NMS ( option ) |
| |
Displays local communication status
Monitoring system status for each site
Provides optical cable network broken-down alarm
Provides system operation history and management.
|
|
| ORDERING INFORMATION |
| |
PART
NUMBER |
DESCRIPTION |
OPTICAL
PWR BUDGET |
MAX
DISTANCE
|
SINGLE-MODE
9/125um |
EL - 96D1402 TX
EL - 96D1402 RX
EL - 128D1402 TX
EL - 128D1402 RX
EL - 96D1602 TX
EL - 96D1602 RX
EL - 128D1602 TX
EL - 128D1602 RX
EL - 96D1802 TX
EL - 96D1802 RX
EL - 128D1802 TX
EL - 128D1802 RX |
96ch Data Transmitter
96ch Data Transmitter
128ch Data Transmitter
128ch Data Transmitter
96ch Data Transmitter
96ch Data Transmitter
128ch Data Transmitter
128ch Data Transmitter
96ch Data Transmitter
96ch Data Transmitter
128ch Data Transmitter
128ch Data Transmitter
|
13dB
20dB
25dB
|
40Km
60Km
80Km |
|
| SPECIFICATIONS |
DATA
Data Interface: RS-232,RS-422, RS-485 with Tri-State
Data Format: NRZ,RZI,Manchester, Bi-phase
Data Rate: DC - 300Kbps(NRZ)
Bit Error Rate: < 1 in 10 E-9
Operating Mode: Simplex or Full-Duplex
WAVELENGTH 1470 ~ 1690nm
OPTICAL EMITTER Laser Diode
NUMBER OF FIBER 1Core
LED INDICATORS
¤ıData Transceiver
¤ıRX, TX Data LED
¤ıPower LED
|
|
| |
|
| |
CONNECTORS
Data: Terminal Block with Screw Clamps, Type DB-9 Connector (RJ-45)
Optical: ST or SC Connector
ELECTRICAL & MECHANICAL
Power: 12 VDC @ 4.8 A
Surface Mount: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State
Current limiters
Size( WxHxD )
6u Card Type 25 x 256 x 224mm
6u Rack Mount 483 x 264 x 275mm
ENVIRONMENTAL
MTBF: > 100,000 hours
Operating Temp: -40¡É to +74¡É
Storage Temp: -40¡É to +85¡É
Relative Humidity: 0% to 95% (non-condensing)
|
|

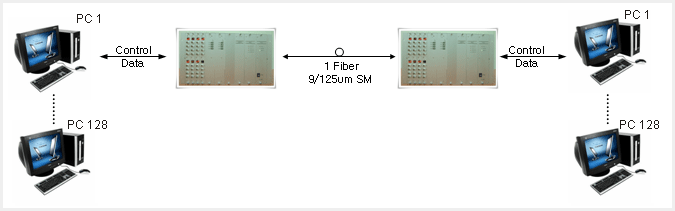

| SYSTEM DESIGN |
 |
|
