 DESCRIPTION |

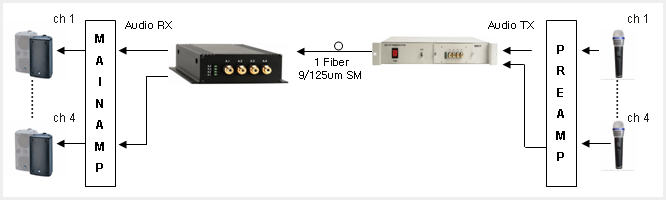

| The ELIM EL-4A2202 TX/RX seriesaudio transceiver supportssimultaneous 4 channels of digital audio transmission over a single-mode optical fiber. It is suitable for long haultransmission application without any noise or electromagnetic interference.The modules are universallycompatible with general purposeaudio signal transmission system.Plug-and-play design ensures ease of installation requiring no Electrical or optical adjustments. Each Transceiver incorporatesstatus indicating LED¡¯s for monitoring of proper System operation. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
Digitally encoded 16 bit high quality digital audio
600 Ohms balanced/unbalanced audio I/O
Plug-and-Play Installation ( Adjustment-Free )
LED Status Indicators For Monitoring system status
Hot-Swappable Rack Modules
Automatic re-settable Fuses
Free voltage Power Input
Transmission distances up to 190 km
Registration of EMI/EMC, K-Mark, UL certificationINNO-BIZ, Good Software and Venture Business
|
| |
NMS ( option ) |
| |
Displays local audio status
Monitoring system status for each site
Provides optical cable network broken-down alarm
Provides system operation history and management
|
|
