 DESCRIPTION |
| The ELIM EL-V2D1202 TX/RX series video/data transmitter/receiver supports simultaneous 1 channel of broadcasting quality video transmission of 10-Bit digitally encoded video and 2 channels of data transmission over a single-mode optical fiber.It is suitable for long haul transmission application without any noiseand electromagnetic interference. The modules are universally compatible with major CCTV camera manufacturers.Plug-and-play design ensures ease of installation without any electrical or optical adjustments. Each transceiver incorporatesnumeric or LED level displays for monitoring of proper system Operation. It displays video signal levels and optical network status. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
10-Bit high quality Digitally Encoded Video Transmission
Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
Transmission Distances up to 190 Km
NTSC/PAL/SECAM compatible
Plug-and-Play Installation ( Adjustment-Free )
Patented video level and optical network status display
Hot-Swappable Rack Modules
Integrated optic WDM(Wavelength Division Multiplexer )
Free voltage Power Input
Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business
|
| |
NMS ( option ) |
| |
Displays video level and optical network status
Monitoring video input signal level & status for each site
Provides optical cable network broken-down alarm
Provides system operation history and management.
|
|
| ORDERING INFORMATION |
| |
PART
NUMBER |
DESCRIPTION |
OPTICAL
PWR BUDGET |
MAX
DISTANCE
|
SINGLE-MODE
9/125um |
EL - V2D1202 TX
EL - V2D1202 RX
EL - V2D1402 TX
EL - V2D1402 RX
EL - V2D1602 TX
EL - V2D1602 RX |
1ch Video Transmitter / 2ch Data Transceiver
1ch Video Receiver / 2ch Data Transceiver
1ch Video Transmitter / 2ch Data Transceiver
1ch Video Receiver / 2ch Data Transceiver
1ch Video Transmitter / 2ch Data Transceiver
1ch Video Receiver / 2ch Data Transceiver
|
7dB
13dB
20dB
|
20Km
40Km
60Km
|
| MULTI-MODE 62.5/125um |
EL - V2D1051 TX
EL - V2D1051 RX |
1ch Video Transmitter / 2ch Data Transceiver
1ch Video Receiver / 2ch Data Transceiver
|
5dB
|
5Km |
|
| SPECIFICATIONS |
VIDEO
Video Input: 1 volt pk-pk ( 75 ohms )
Video Bandwidth: 10 Hz - 10 MHz
Differential Gain: <0.7%
Differential Phase: <0.7¢ª
Tilt: <1%
Signal-to-Noise Rate: >67dB
DATA
Data Interface: RS-232,RS-422, RS-485
with Tri-State
Data Format: NRZ,RZI,Manchester, Bi-phase
Data Rate: DC - 300Kbps(NRZ)
Bit Error Ratio: < 1 in 10 E-9
Operating Mode: Simplex or Full-Duplex
WAVELENGTH 1310/1550nm
OPTICAL EMITTER Laser Diode
NUMBER OF FIBER 1Core
LED INDICATORS
¤ıVideo Transmitter/ Data Transceiver
¤ıVideo input level display (7segment)
¤ıRX, TX Data LED
¤ıPower LED
¤ıVideo Receiver/ Data Transceiver
¤ıVideo input level display (7segment)
¤ıFiber optic cable status alarm
¤ıRX, TX Data LED
¤ıPower LED
|
|
| |
|
| |
CONNECTORS
Video: BNC (Gold Plated Center-Pin)
Data: Terminal Block with Screw Clamps,
Type DB-9 Connector (RJ-45)
Optical: ST or SC Connector
ELECTRICAL & MECHANICAL
Power: 12 VDC @ 300mA
Surface Mount: From Rack
Number of Rack Slots: 12
Current Protection: Automatic Resettable Solid-State
Current limiters
Size( WxHxD )
Module Type 123 x 35 x 220mm
3u Card Type 25 x 128 x 224mm
1u Rack Mount 483 x 44 x 330mm
3u Rack Type 483 x 44 x 275mm
ENVIRONMENTAL
MTBF: > 100,000 hours
Operating Temp: -40¡É to +74¡É
Storage Temp: -40¡É to +85¡É
Relative Humidity: 0% to 95% (non-condensing) |
|

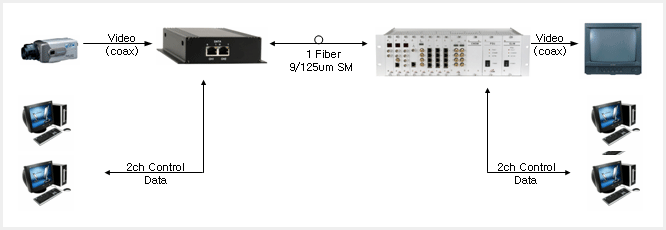

| SYSTEM DESIGN |
 |
|
