 DESCRIPTION |

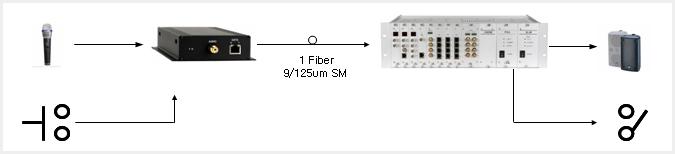

| The ELIM EL-AR2202 TX/RX seriestransceiver supports1 channel of digital audio transmission and contact closuresignals over a single-mode optical fiber.It is suitable for long haul transmission application without any noise or electromagnetic interference.The modules are universallycompatible with general purposeaudio signal transmission system.Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each Transceiver incorporatesstatus indicating LED’s for monitoring of proper System operation. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
10-Bit high quality Digitally Encoded Video Transmission
Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
Transmission Distances up to 190 Km
NTSC/PAL/SECAM compatible
Plug-and-Play Installation ( Adjustment-Free )
Patented video level and optical network status display
Hot-Swappable Rack Modules
Integrated optic WDM(Wavelength Division Multiplexer )
Free voltage Power Input
Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business
|
| |
NMS ( option ) |
| |
Displays video level and optical network status
Monitoring video input signal level & status for each site
Provides optical cable network broken-down alarm
Provides system operation history and management.
|
|
