 DESCRIPTION |

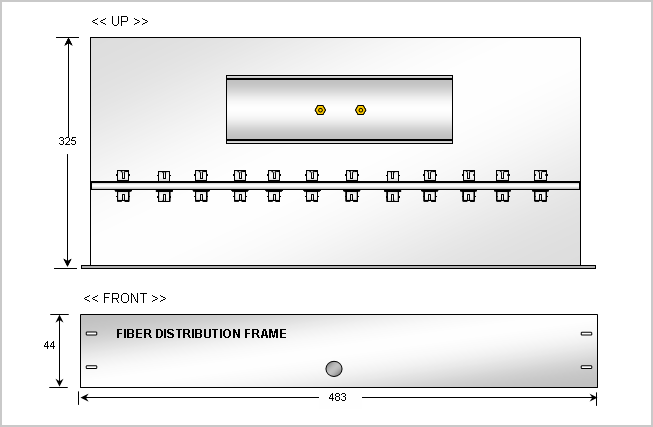

| The ELIM Fiber optic patch panel series provide connections between transmitter and receiver and it consists of inlet/outlet fiber optic cable grips, fusion splice trays and interconnectionadapters. It is suitable for large capacity interconnection systemfrom 12 core up to 288 core of optical fiber. |
| APPLICATION |
CCTV, ITV and traffic control System
CATV System
Security System
Process control and monitoring System |
|
| |
FEATURES |
| |
Types : 19ĦħRack Mount, Wall mount and anti-explosion.
Max. capacity : 12 ~ 288 cores.
Fiber optic adapters : 12 ~ 288 cores.
Types of adapters : ST, SC and FC ( option )
|
|
