DIGITAL 1ch VIDEO & 1ch DATA / 1ch AUDIO LINK

EL - VAD1202 TX / RX SERIES

LIST

Optical Link Modules
video 1audio1data1
innobiz, KS
  • DESCRIPTION
    The ELIM EL-VAD1202 TX/RX series video/data transmitter/receiver supports simultaneous 1 channel of broadcasting quality video transmission of 10-Bit digitally encoded video, 1 channel of audioand 1 channel of data transmission over a single-mode optical fiber.It is suitable for long haul transmission application without any noiseand electromagnetic interference. The modules are universally compatible with major CCTV camera manufacturers.Plug-and-play design ensures ease of installation without any electrical or optical adjustments. Each transceiver incorporatesnumeric or LED level displays for monitoring of proper system Operation. It displays video signal levels and optical network status.
  • FEATURES
    10-Bit high quality Digitally Encoded Video Transmission
    Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
    Transmission Distances up to 190 Km
    NTSC/PAL/SECAM compatible
    Plug-and-Play Installation ( Adjustment-Free )
    Patented video level and optical network status display
    Hot-Swappable Rack Modules
    Integrated optic WDM(Wavelength Division Multiplexer )
    Free voltage Power Input
    Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP,INNO-BIZ, Good Software and Venture Business
  • APPLICATION
    CCTV, ITV and traffic control System
    CATV System
    Security System
    Process control and monitoring System
  • NMS( option )
    Displays video level and optical network status
    Monitoring video input signal level & status for each site
    Provides optical cable network broken-down alarm
    Provides system operation history and management.
ORDERING INFORMATION
ORDERING INFORMATION
  PART NUMBER DESCRIPTION OPTICAL PWR BUDGET MAX DISTANCE
SINGLE-MODE 9/125um EL-VAD1202 TX 1ch V Transmitter / 1ch D Transceiver / 1ch A Receiver 7dB 20Km
EL-VAD1202 RX 1ch V Receiver / 1ch D Transceiver / 1ch A Transmitter
EL-VAD1402 TX 1ch V Transmitter / 1ch D Transceiver / 1ch A Receiver 13dB 40Km
EL-VAD1402 RX 1ch V Receiver / 1ch D Transceiver / 1ch A Transmitter
EL-VAD1602 TX 1ch V Transmitter / 1ch D Transceiver / 1ch A Receiver 20dB 60Km
EL-VAD1602 RX 1ch V Receiver / 1ch D Transceiver / 1ch A Transmitter
MULTI-MODE 62.5/125um EL-VAD1051 TX 1ch V Transmitter / 1ch D Transceiver / 1ch A Receiver 5dB 5Km
EL-VAD1051 RX 1ch V Receiver / 1ch D Transceiver / 1ch A Transmitter
SPECIFICATIONS
  • VIDEO
    Video Input: 1 volt pk-pk ( 75 ohms )
    Video Bandwidth: 10 Hz - 10 MHz
    Differential Gain: <0.7%
    Differential Phase: <0.7
    Tilt: <1%
    Signal-to-Noise Ratio: >67dB
  • CONNECTORS
    Video: BNC (Gold Plated Center-Pin)
    Data: Terminal Block with Screw Clamps
    Type DB-9 Connector (RJ-45)
    Optical: ST or SC Connector
  • DATA
    Data Interface: RS-232,RS-422, RS-485
    with Tri-State
    Data Rate: DC - 300Kbps(NRZ)
    Bit Error Ratio: < 1 in 10 E-9
    Operating Mode: Simplex or Full-Duplex
  • AUDIO
    Audio in/out level : 0dBm r.m.s( 2.2V pk-pk )
    Audio Bandwidth: 20 Hz - 20 KHz
    Total harmonic distortion: -62dB
    Signal-to-Noise Ratio: >67dB
  • WAVELENGTH
    1310/1550nm
  • ELECTRICAL & MECHANICAL
    Power: 12 VDC @ 300mA
    Surface Mount: From Rack
    Number of Rack Slots: 12
    Current Protection: Automatic Resettable Solid-State
    Current limiters
  • OPTICAL EMITTER
    Laser Diode
  • Size( WxHxD )
    Module Type 123 x 35 x 220mm
    3u Card Type 25 x 128 x 224mm
    1u Rack Mount 483 x 44 x 330mm
    3u Rack Mount 483 x 132 x 275mm
  • NUMBER OF FIBER
    1Core
  • ENVIRONMENTAL
    MTBF: > 100,000 hours
    Operating Temp: -40°C to +74°C
    Storage Temp: -40°C to +85°C
    Relative Humidity: 0% to 95% (non-condensing)
  • LED INDICATORS
    Video Transmitter/ Data Transceiver/Audio Receiver
    Video input level display(7 segment)/dd>
    RX, TX Data LED
    Power LED
    Video Receiver/ Data Transceiver/Audio Transmitter
    Video input level display (7segment)
    Fiber optic cable status alarm
    RX, TX Data LED
    Power LED

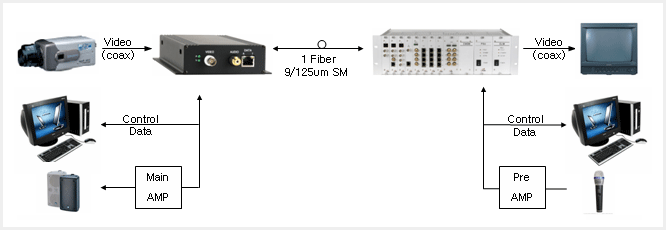

SYSTEM DESIGN

system design
