FIBER OPTIC Managed Ethernet Switch

home > product > FIBER OPTIC Managed Ethernet Switch

FIBER OPTIC BY_PASS SWICTH 10/100/1000Mbps RT/COT

This product is to transmit TCP IP Ethernet data (10/100Mbps and 10/100/1000Mbps ) through 1 or 2Core optical cable. It is the W.D.M (Wavelength Division Multiplexing)method using optical characteristics, capable of no-relay long-distance transmission, and getting no influence from electric field and magnetic field.Having TCP IP input and output display LED on the transmission and receiving part, it shows the data communication state visually with no other devices.

  • APPLICATION
    CCTV, ITV and traffic control System
    CATV System
    Security System
    Process control and monitoring System
  • FEATURES
    High quality TCP/IP transmission
    1 fiber (WDM) or 2 fiber transmission
    IEEE802.3 10Base-T, IEEE802.3a 100Base-TX
    IEEE802.3ab 1000Base-T, Ieee 802.3z 1000Base-Sx/Lx
    Long-distance transmission with no-relay using the optical characteristics of optical communications
    Full-Duplex, Half-Duplex mode Auto-negotiation
    Electromagnetic Waves, K Mark, Venture Business, INNOBIZ, GS, CE Certification

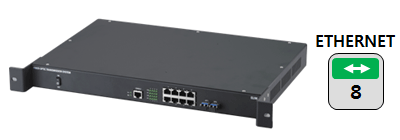

  • EL-GBP8E1402 RT / COT

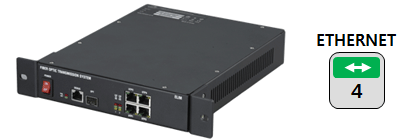

  • EL-GBP4E1402 RT / COT

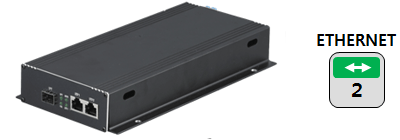

  • EL-GBP2E1402 RT / COT
  • EL-GBP16E1402 RT / COT

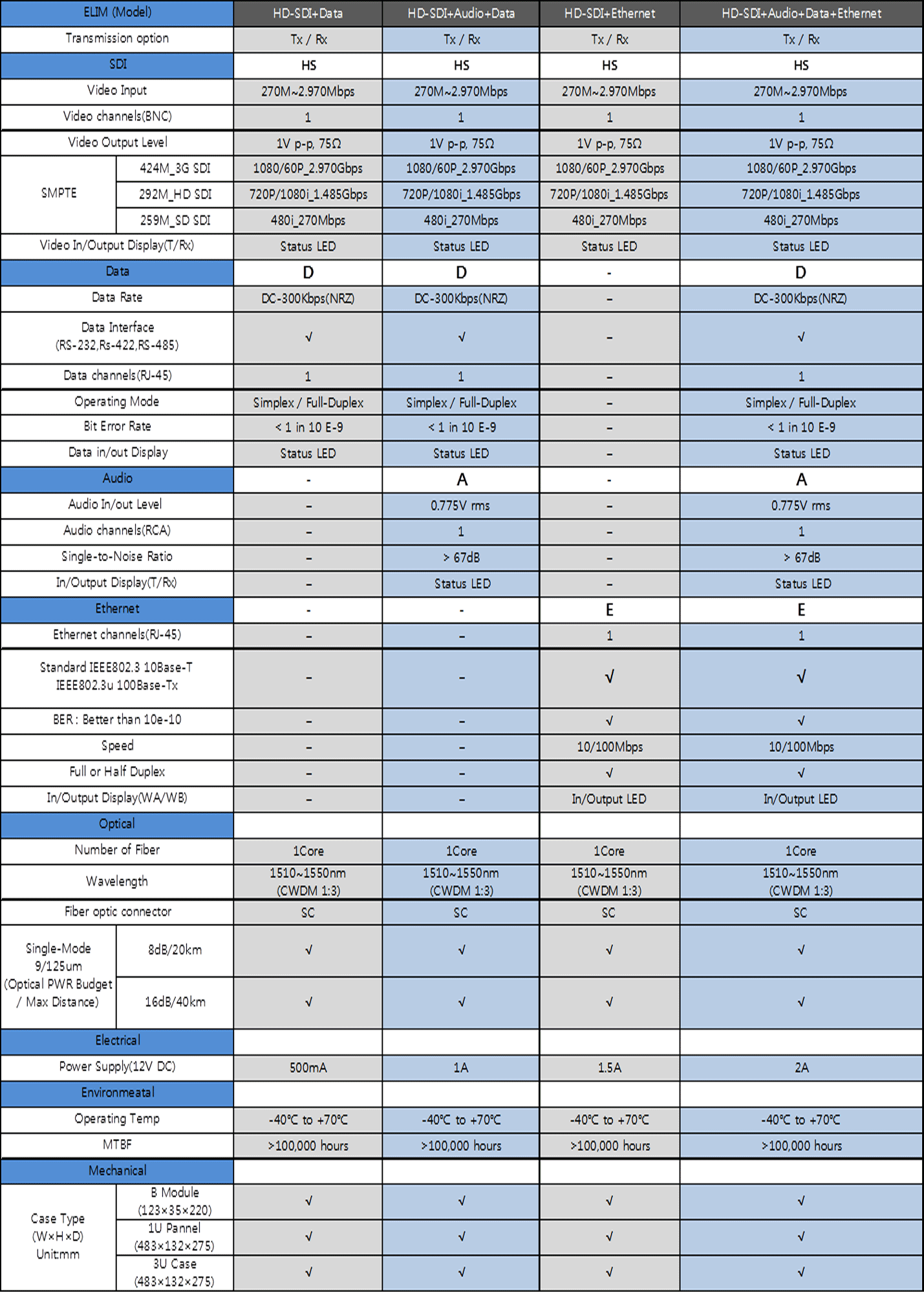

  • SPECIFICATION
  • FIBER OPTIC Managed Ethernet Switch

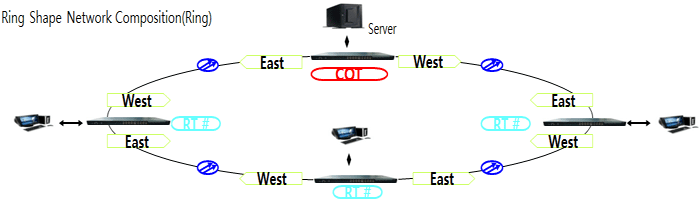

  • SYSTEM DESIGN
