DIGITAL HDMI(DVI) LINK

PRODUCT SPECIFICATION EL-HD2022 TX / RX LINK

LIST

HDMI/DVI CONVERTER
video 1
innobiz, KS
  • DESCRIPTION
    This product is to transmit TCP IP Ethernet data (10/100/1000Mbps) through 1 or 2Core optical cable. It is the W.D.M (Wavelength Division Multiplexing)method using optical characteristics, capable of no-relay long-distance transmission, and getting no influence from electric field and magnetic field. Having TCP IP input and output display LED on the transmission and receiving part, it shows the data communication state visually with no other devices.
  • FEATURES
    Non compressed digital transmission
    Long haul optical transmission (over 40 km) without repeater
    Full-HD 1920 x 1080 support
    Free voltage
    Registration of EMI/EMC, K-Mark, UL certification NEP, INNO-BIZ, Good Software and Venture Business, Nomination of Government Procurement Excellent Product
  • APPLICATION
    ITV and traffic control System
    Security System
    Medical System
ORDERING INFORMATION
ORDERING INFORMATION
  PART NUMBER DESCRIPTION OPTICAL PWR BUDGET MAX DISTANCE
SINGLE-MODE 9/125um EL-HD2022 TX 1Core 1CH HDMI Transmitter 8dB 2Km
EL-HD2022 RX 1Core 1CH HDMI Receiver
EL-HD2042 TX 1Core 1CH HDMI Transmitter 16dB 4Km
EL-HD2042 RX 1Core 1CH HDMI Receiver
SPECIFICATIONS
  • VIDEO
    Video Input: HDMI / DVI Signal
    Video Picxel: 1920 x 1080P60Hz
    Full-HD 1920 x 1080 support
    Differential Phase: <0.7
    Tilt: <1%
    Signal-to-Noise Ratio: >67dB
  • CONNECTORS
    Video: HDMI 19 Pin Cable
    Optical: ST or SC Connector
  • WAVELENGTH
    1310/1550nm
  • ELECTRICAL & MECHANICAL
    Power: 12VDC @ 500mA
    Surface Mount: From Rack
    Number of Rack Slots: 12
    Current Protection: Automatic Resettable Solid-State
    Current limiters
  • OPTICAL EMITTER
    Laser Diode
  • Size( WxHxD )
    Module Type: 87 x 32 x 113mm
    3u Card Type: 25 x 129 x 168mm
    1u Rack Mount: 483 x 44 x 300mm
    3u Rack Mount: 483 x 132 x 275mm
  • NUMBER OF FIBER
    1Core
  • ENVIRONMENTAL
    MTBF: > 100,000 hours
    Operating Temp: -5°C to +75°C
    Storage Temp: -25°C to +85°C
    Relative Humidity: 5% to 95% (non-condensing)
  • LED INDICATORS
    Video Transmitter
    Video Status LED
    Power LED
    Video Receiver
    Video Status LED
    Power LED

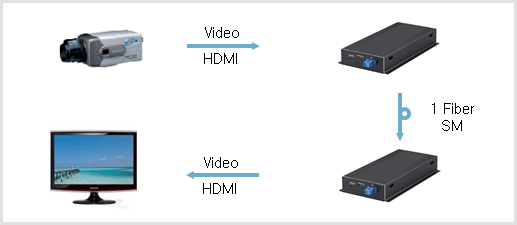

SYSTEM DESIGN
