Media Converter

home > product > Media Converter

FIBER OPTIC TCP IP LINK 10/100/1000Mbps

This product is to transmit TCP IP Ethernet data (10/100/1000Mbps) through 1 or 2Core optical cable. It is the W.D.M (Wavelength Division Multiplexing)method using optical characteristics, capable of no-relay long-distance transmission, and getting no influence from electric field and magnetic field. Having TCP IP input and output display LED on the transmission and receiving part, it shows the data communication state visually with no other devices.

• APPLICATION

  High quality TCP/IP transmission

  1 fiber (WDM) or 2 fiber transmission

  IEEE802.3 10Base-T, IEEE802.3a 100Base-TX

  IEEE802.3ab 1000Base-T, Ieee 802.3z 1000Base-Sx/Lx

  Long-distance transmission with no-relay using the optical characteristics of optical communications

  Full-Duplex, Half-Duplex mode Auto-negotiation

  Electromagnetic Waves, K Mark, Venture Business, INNOBIZ, GS, CE Certification

• FEATURES

  CCTV, ITV and traffic control System

  CATV System

  Security System

  Process control and monitoring System

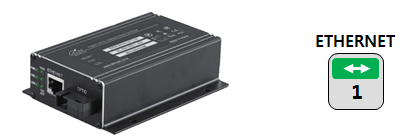

• EL-GE1202 T/RX SERIES

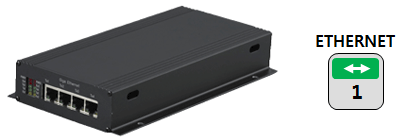

• EL-4GE1202 T/RX SERIES

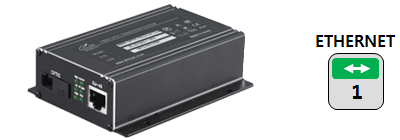

• EL-E1202 T/RX SERIES

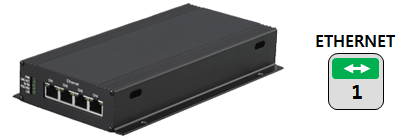

• EL-4E1202 T/RX SERIES

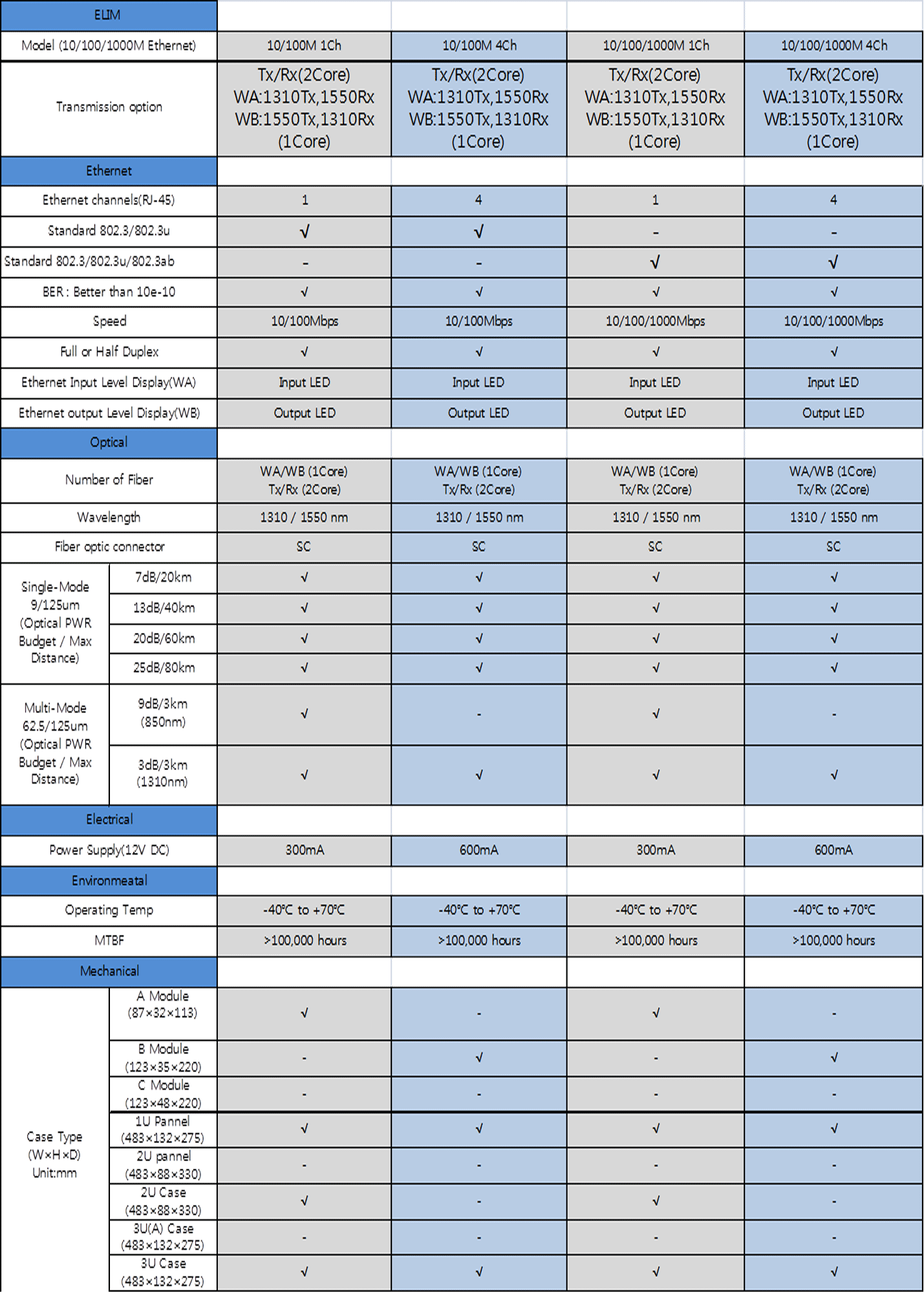

• SPECIFICATION
•

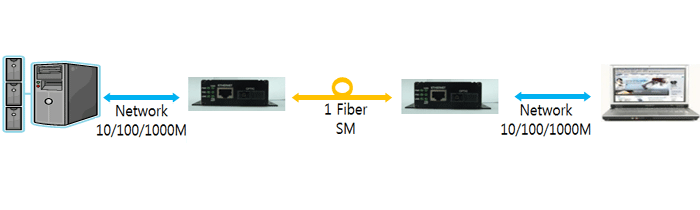

• SYSTEM DESIGN
•
•
