DIGITAL VIDEO LINK | DIGITAL VIDEO 1CH MUX SERIES

EL - 128V2402 TX / RX LINK

LIST

• PDF download(1)
• PDF download(2)

• DESCRIPTION

  The ELIM EL-96V2402 TX/RX series video transmitter/receiver supports simultaneous 96 channels of broadcasting quality video transmission of 10-Bit digitally encoded video over a single-mode optical fiber.It is suitable for long haul transmission application without any noiseand electromagnetic interference. The modules are universally compatible with major CCTV camera manufacturers.Plug-and-play design ensures ease of installation without any electrical or optical adjustments. Each transceiver incorporates numeric or LED displays for monitoring of proper system operation.It displays video signal levels and optical network status

• FEATURES

  10-Bit high quality Digitally Encoded Video Transmission Transmission Distances up to 190 Km

  NTSC/PAL/SECAM compatible. Plug-and-Play Installation ( Adjustment-Free )

  Patented video level and optical etwork status display Hot-Swappable Rack

  Modules Automatic re-settable Fuses Free voltage Power Input.

  Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business

• APPLICATION

  CCTV, ITV and traffic control System

  CATV System

  Security System

  Process control and monitoring System

• NMS( option )

  Displays video level and optical network status

  Monitoring video input signal level & status for each site

  Provides optical cable network broken-down alarm

  Provides system operation history and management

ORDERING INFORMATION

ORDERING INFORMATION

	PART NUMBER	DESCRIPTION	OPTICAL PWR BUDGET	MAX DISTANCE
SINGLE-MODE 9/125um	EL - 96V2402 TX	96ch Video Transmitter	13dB	40Km
	EL - 96V2402 RX	96ch Video Receiver
	EL - 128V2402 TX	128ch Video Transmitter
	EL - 128V2402 RX	128ch Video Receiver
	EL - 96V2602 TX	96ch Video Transmitter	20dB	60Km
	EL - 96V2602 RX	96ch Video Receiver
	EL - 128V2602 TX	128ch Video Transmitter
	EL - 128V2602 RX	128ch Video Receiver
	EL - 96V2802 TX	96ch Video Transmitter	25dB	80Km
	EL - 96V2802 RX	96ch Video Receiver
	EL - 128V2802 TX	128ch Video Transmitter
	EL - 128V2802 RX	128ch Video Receiver

SPECIFICATIONS

• VIDEO

  Video Input: 1 volt pk-pk ( 75 ohms )

  Video Bandwidth: 10 Hz - 10 MHz

  Differential Gain: <0.7%

  Differential Phase: <0.7

  Tilt: <1%

  Signal-to-Noise Ratio: >67dB

• CONNECTORS

  Video: BNC (Gold Plated Center-Pin)

  Optical: ST or SC Connector

• WAVELENGTH

  1470 ~ 1690nm

• ELECTRICAL & MECHANICAL

  Power: 12 VDC @ 4.8A

  Surface Mount: From Rack

  Number of Rack Slots: 1

  Current Protection: Automatic Resettable Solid-State

  Current limiters

• OPTICAL EMITTER

  Laser Diode

• Size( WxHxD )

  6u Card Type 25 x 256 x 224mm

  6u Rack Mount: 483 x 264 x 275mm

• NUMBER OF FIBER

  1Core

• VIDEO LEVEL DISPLAY

  Video Transmitter

  Video input level display (7 segment)

  Power LED

  Video Receiver

  Video input level display (7 segment)

  Fiber optic cable status alarm

  Power LED

• ENVIRONMENTAL

  MTBF: > 100,000 hours

  Operating Temp: -40°C to + 74°C

  Storage Temp: -40°C to +85°C

  Relative Humidity: 0% to 95% (non-condensing)

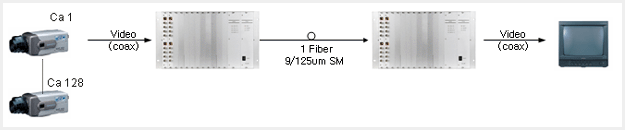

SYSTEM DESIGN
