FIBER OPTIC ETHERNET SWITCH |
DIGITAL 6ch VIDEO WITH 6ch DATA AND 4ch ETHERNET LINK

EL - 6V6D4E1402 TX / RX SERIES

LIST

Fiber Optic Ethernet Switch
video 6 data 6 lan 6
innobiz, KS
  • DESCRIPTION
    The ELIM EL-6V6D4E1402 TX/RX series video/data transmitter/receiver supports simultaneous 6 channels of broadcasting quality video transmission of 10-Bit digitally encoded video, 6 channels of data and 4 channels of ethernet transmission over a single-mode optical fiber. It is suitable for long haul transmission application without any noise and electromagnetic interference. The modulesare universally compatible with major CCTV camera manufacturers.Plug-and-play design ensures ease of installation without any electrical or optical adjustments. Each transceiver incorporatesnumeric or LED level displays for monitoring of proper system Operation. It displays video signal levels and optical network status.
  • FEATURES
    10-Bit high quality Digitally Encoded Video Transmission
    Supports RS-232, RS-422 or RS-485 ( 2 ?wire or4-wire ) Data Interfaces
    Transmission Distances up to 190 Km
    NTSC/PAL/SECAM compatible
    Plug-and-Play Installation ( Adjustment-Free )
    Patented video level and optical network status display
    Hot-Swappable Rack Modules
    Integrated optic WDM(Wavelength Division Multiplexer )
    Free voltage Power Input
    Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business
  • APPLICATION
    CCTV, ITV and traffic control System
    CATV System
    Security System
    Process control and monitoring System
  • NMS( option )
    Displays video level and optical network status
    Monitoring video input signal level & status for each site
    Provides optical cable network broken-down alarm
    Provides system operation history and management.
ORDERING INFORMATION
ORDERING INFORMATION
  PART NUMBER DESCRIPTION OPTICAL PWR BUDGET MAX DISTANCE
SINGLE-MODE 9/125um EL-6V6D4E1402 TX 6ch V Transmitter/6ch D Transceiver/4ch E Transceiver 13dB 40Km
EL-6V6D4E1402 RX 6ch V Receiver/6ch D Transceiver/4ch E Transceiver
EL-6V6D4E1602 TX 6ch V Transmitter/6ch D Transceiver/4ch E Transceiver 20dB 60Km
EL-6V6D4E1602 RX 6ch V Receiver/6ch D Transceiver/4ch E Transceiver
EL-6V6D4E1802 TX 6ch V Transmitter/6ch D Transceiver/4ch E Transceiver 25dB 80Km
EL-6V6D4E1802 RX 6ch V Receiver/6ch D Transceiver/4ch E Transceiver
SPECIFICATIONS
  • VIDEO
    Video Input: 1 volt pk-pk ( 75 ohms )
    Video Bandwidth: 10 Hz - 10 MHz
    Differential Gain: <0.7%
    Differential Phase: <0.7°
    Tilt: <1%
    Signal-to-Noise Rate: >67dB
  • CONNECTORS
    Video: BNC (Gold Plated Center-Pin)
    Data: Terminal Block with Screw Clamps, Type DB-9 Connector (RJ-45)
    Ethernet : RJ-45 Connector
    Optical: ST or SC Connector
  • DATA
    Data Interface: RS-232,RS-422, RS-485
    with Tri-State
    Data Format: NRZ,RZI,Manchester, Bi-phase
    Data Rate: DC - 300Kbps(NRZ)
    Bit Error Ratio: < 1 in 10 E-9
    Operating Mode: Simplex or Full-Duplex
  • ELECTRICAL & MECHANICAL
    Power: 12 VDC @ 500mA
    Surface Mount: From Rack
    Number of Rack Slots: 6
    Current Protection: Automatic Resettable Solid-State
    Current limiters
  • ETHERNET
    Protocol : IEEE 802.3/802.3u
    Duplex Mode: Full or Half Duplex
    Frame : 803/8033 fps
    BER : Better than 10e-10
  • Size( WxHxD )
    6u Card Type 25 x 256 x 224mm
    6u Rack Mount 483 x 264 x 275mm
  • WAVELENGTH
    1310/1550nm
  • ENVIRONMENTAL
    MTBF: > 100,000 hours
    Operating Temp: -40°C to +74°C
    Storage Temp: -40°C to +85°C
    Relative Humidity: 0% to 95% (non-condensing)
  • OPTICAL EMITTER
    Laser Diode
  • NUMBER OF FIBER
    1Core
  • LED INDICATORS
    Video Transmitter/Data & Ethernet Transceiver
    Video input level display(7 segment)
    RX, TX Data LED
    Ethernet PWR, FX LNK, TP LNK
    Power LED


    Video Receiver/Data & Ethernet Transceiver
    Video input level display(7 segment)
    Fiber optic cable status alarm
    RX, TX Data LED
    Ethernet PWR, FX LNK, TP LNK
    Power LED

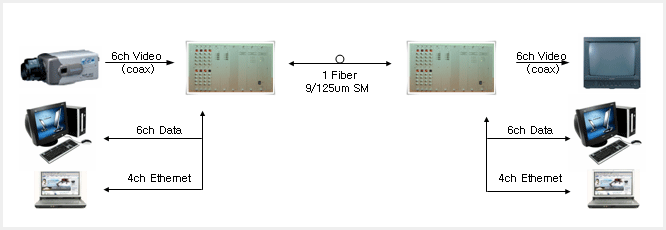

SYSTEM DESIGN

system design
