GIGABIT MEDIA CONVERTER | DIGITAL DATA 4CH MUX SERIES

EL - 4D1202 TX / RX LINK

LIST

gigabit media converter
video 1
innobiz, KS
  • DESCRIPTION
    The ELIM EL-4D1202 TX/RX Series data transceiver supports simultaneous 4 channels of digital data transmission over a single-mode optical fiber. It is suitable for long haultransmission application without any noise or electromagnetic interference.The modules are universallycompatible with Major CCTV control data and support RS-232, RS-422 and 2-wire or 4-wire RS-485data interfaces,as well as Sensormatic Sensornet™and all major data protocols.Plug-and-play design ensures ease of installation requiring no Electrical or optical adjustments. Each Transceiver incorporatesstatus indicating LED's for monitoring of proper System operation.
  • FEATURES
    Supports RS-232, RS-422 or RS-485 ( 2 wire or4-wire ) Data Interfaces
    Plug-and-Play Installation ( Adjustment-Free )
    LED Status Indicators For Monitoring system status
    Hot-Swappable Rack Modules
    Automatic re-settable Fuses
    Free voltage Power Input
    Transmission distances up to 190Km
    Free voltage Power Input. Registration of EMI/EMC, K-Mark, UL certification,NEP, INNO-BIZ, Good Software and Venture Business
  • APPLICATION
    CCTV, ITV and traffic control System
    CATV System
    Security System
    Process control and monitoring System
  • NMS( option )
    Displays local communication status
    Monitoring system status for each site
    Provides optical cable network broken-down alarm
    Provides system operation history and management.
ORDERING INFORMATION
ORDERING INFORMATION
  PART NUMBER DESCRIPTION OPTICAL PWR BUDGET MAX DISTANCE
SINGLE-MODE 9/125um EL - 4D1202 TX 4ch Data Transmitter 7dB 20Km
EL - 4D1202 RX 4ch Data Transmitter
EL - 4D1402 TX 4ch Data Transmitter 13dB 40Km
EL - 4D1402 RX 4ch Data Transmitter
EL - 4D1602 TX 4ch Data Transmitter 20dB 60Km
EL - 4D1602 RX 4ch Data Transmitter
MULTI-MODE 62.5/125um EL - 4D1051 TX 4ch Data Transmitter 5dB 5Km
EL - 4D1051 RX 4ch Data Transmitter
SPECIFICATIONS
  • DATA
    Data Interface: RS-232,RS-422, RS-485 with Tri-State
    Data Format: NRZ,RZI,Manchester, Bi-phase
    Data Rate: DC - 300Kbps(NRZ)
    Bit Error Rate: < 1 in 10 E-9
    Operating Mode: Simplex or Full-Duplex
  • CONNECTORS
    Data: Terminal Block with Screw Clamps, Type DB-9 Connector (RJ-45)
    Optical: ST or SC Connector
  • WAVELENGTH
    1310/1550nm
  • ELECTRICAL & MECHANICAL
    Power: 12 VDC @300mA
    Surface Mount: From Rack
    Number of Rack Slots: 12
    Current Protection: Automatic Resettable Solid-State
    Current limiters
  • OPTICAL EMITTER
    Laser Diode
  • Size( WxHxD )
    Module Type 123 x 35 x 220mm
    3u Card Type 25 x 128 x 224mm
    1u Rack Mount 483 x 44 x 330mm
    3u Rack Mount 483 x 132 x 275mm
  • NUMBER OF FIBER
    1Core
  • LED INDICATORS
    Data Transceiver
    RX, TX Data LED
    Power LED
  • ENVIRONMENTAL
    MTBF: > 100,000 hours
    Operating Temp: -40°C to +74°C
    Storage Temp: -40°C to +85°C
    Relative Humidity: 0% to 95% (non-condensing)

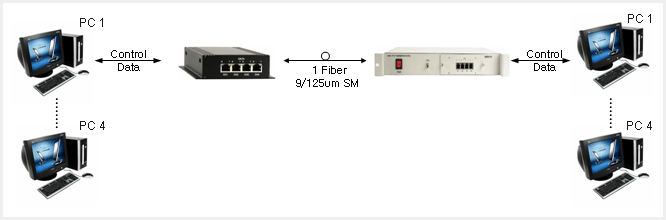

SYSTEM DESIGN
